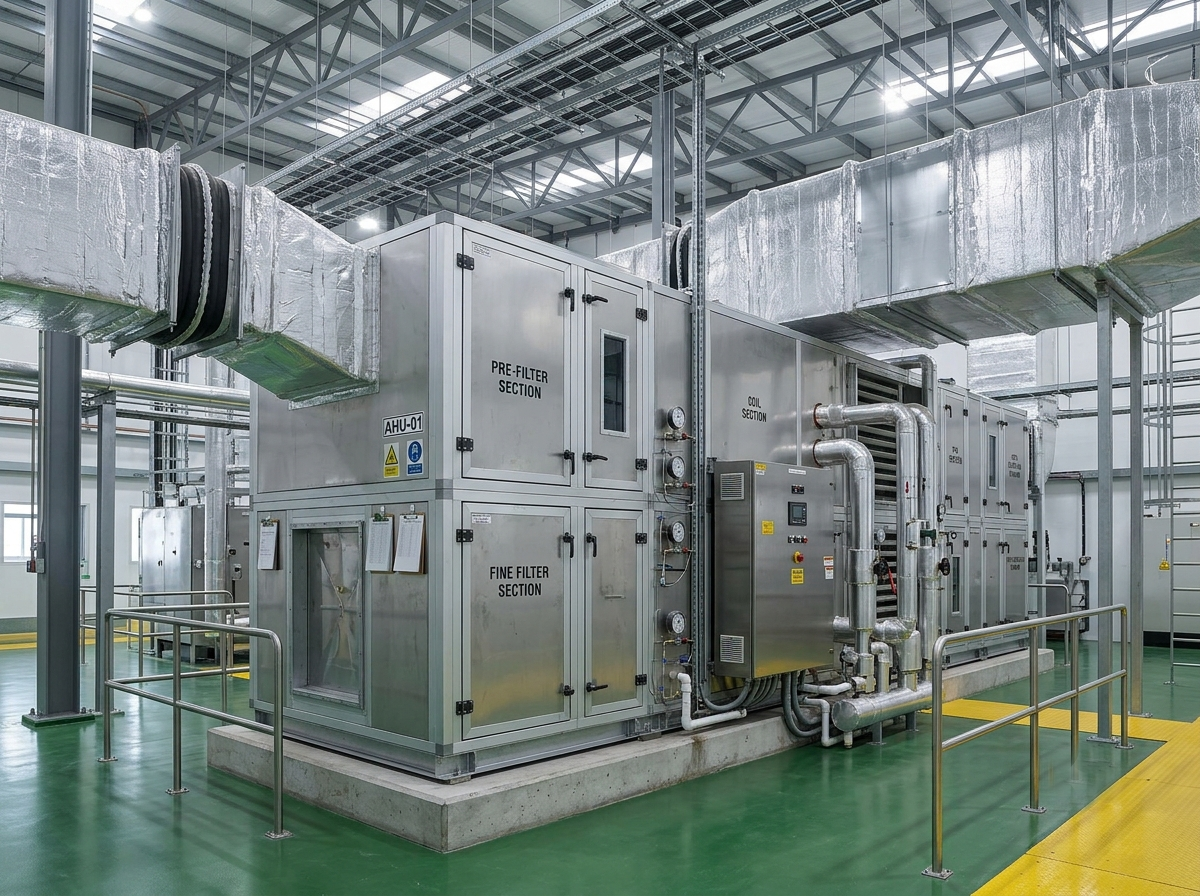

Clean Room AHU System Manufacturer and Exporter in India – Customized Clean Room Air Handling Unit for Controlled Environments.
Vayuvents Pvt. Ltd. is a leading manufacturer and exporter of Clean Room AHU Systems in India, based in Vasai, Maharashtra. We design and manufacture application-specific air handling systems for cleanrooms and controlled environments where air cleanliness, temperature, humidity, pressure, ventilation, and airflow need to be carefully managed.
A Clean Room Air Handling Unit (AHU) is the central air-conditioning and air-treatment equipment used to supply conditioned and filtered air to a cleanroom. Depending on the application, the system can incorporate multiple filtration stages, cooling and heating coils, dehumidification, humidification, fresh-air control, variable-speed fans, pressure monitoring, and automation.
Cleanroom AHU as equipment comprising functions such as fan, filtration, heating, cooling, humidification/dehumidification and fresh/recirculated-air mixing for providing conditioned air to a room or facility.
What is a Clean Room AHU System?
WHAT IS A CLEAN ROOM AHU SYSTEM?
A Clean Room AHU System is an HVAC system specifically configured to maintain the environmental conditions required inside a cleanroom.
Unlike a conventional comfort-air-conditioning AHU, a cleanroom AHU is designed with greater emphasis on:
- Particle control
- Air filtration
- Airflow distribution
- Temperature control
- Humidity control
- Room pressure
- Air changes
- Prevention of contamination
- Equipment cleanliness
- Monitoring and control
APPLICATION-DRIVEN REQUIREMENTS
The actual requirements depend on the cleanroom classification, process, product, personnel load, heat load, contamination-control strategy, and applicable standards.
For example, cleanroom HVAC specifications can include dedicated AHUs, HEPA filtration, controlled temperature and relative humidity, differential room pressure and defined air-change requirements.
IMPORTANT NOTE
There is no single universal temperature, humidity, pressure or air-change value for every cleanroom. These parameters should be established from the specific process and cleanroom classification. Published cleanroom specifications illustrate this variation – for example, one Class-1000 project specified 22 ± 2°C, 45 ± 5% RH and 15–20 Pa differential pressure.
Working Principle of Clean Room AHU
A typical Clean Room AHU operates through a sequence of air-treatment stages:
A controlled quantity of fresh outdoor air enters the AHU through the fresh-air section.
Where recirculation is part of the design, return air from the cleanroom is mixed with fresh air in a controlled proportion.
The air passes through a primary filter to remove larger airborne particles and protect downstream components.
Additional filtration can be provided to reduce smaller particles before the air reaches the final filtration stage.
The cooling coil reduces air temperature. When the coil temperature is below the air dew point, moisture can also be removed from the air.
Heating or reheat sections can be incorporated when precise temperature or humidity control is required.
Where the process requires increased humidity, a suitable humidification system can be incorporated.
High-efficiency filtration can be incorporated at the AHU or, depending on the system architecture, at terminal locations before air enters the cleanroom.
The conditioned and filtered air is supplied through the cleanroom ducting and terminal air-distribution system.
Air is returned from the cleanroom through return-air grilles or ducts for recirculation, treatment, or exhaust according to the HVAC design.
Technical Specifications of Clean Room AHU
The following are typical configurable specifications. Final values should be selected after evaluating the cleanroom classification, room volume, heat load, airflow requirement, filtration level, pressure cascade, temperature, humidity and process requirements.
| Parameter | Typical Specification / Options |
|---|---|
| Equipment | Clean Room Air Handling Unit |
| Construction | Double Skin / Hygienic Construction |
| Airflow Capacity | Application-specific |
| External Static Pressure | Application-specific |
| Airflow Direction | Horizontal / Vertical / Customized |
| Installation | Floor Mounted / Customized |
| Casing | Double Skin Insulated |
| Outer Skin | GI / PPGI / SS / Aluminium |
| Inner Skin | GI / SS 304 / Application-specific |
| Panel Thickness | Typically 25–50 mm or as required |
| Insulation | PUF / PU / Rockwool / Suitable Material |
| Fan Type | Centrifugal / Plug Fan / EC Fan |
| Fan Drive | Direct Drive / Belt Drive |
| Motor | As per airflow and pressure |
| Cooling Coil | Chilled Water / DX |
| Heating Coil | Hot Water / Steam / Electric |
| Pre-Filter | Application-specific |
| Fine Filter | Application-specific |
| HEPA Filter | H13 / H14 or as required |
| Fresh Air | Controlled |
| Return Air | Controlled |
| Exhaust Air | As required |
| Damper | Manual / Motorized |
| Drain Pan | SS / GI / Customized |
| Humidification | Optional |
| Dehumidification | Available through suitable design |
| Heat Recovery | Optional, subject to contamination-control requirements |
| VFD | Optional / Recommended for variable airflow control |
| Temperature Control | Digital / PLC / BMS |
| Humidity Control | Optional |
| Differential Pressure Monitoring | Available |
| HEPA Differential Pressure Monitoring | Available |
| BMS Integration | Available |
| Alarm System | Optional |
| Power Supply | As required |
| Frequency | 50 Hz / 60 Hz |
| Customization | Available |
Clean Room AHU Filtration System
Filtration is one of the most important functions of a cleanroom AHU. A multi-stage filtration arrangement may include:
STAGE 1 – PRE-FILTER
Captures larger dust particles and protects coils and downstream filters.
STAGE 2 – FINE FILTER
Provides additional particulate filtration before the final high-efficiency filter.
STAGE 3 – HEPA FILTER
HEPA filtration can be incorporated according to the required cleanroom classification and system architecture.
For example, H13 and H14 terminal HEPA filters are commonly specified for high-cleanliness applications, but the appropriate filter grade should always be selected according to the actual cleanroom design and applicable standard.
Clean Room AHU Benefits
The combination of staged filtration and controlled airflow helps reduce airborne particulate contamination within the cleanroom.
The cooling and heating sections can be selected to maintain the required room temperature.
Stable temperature is particularly important for pharmaceutical, electronics, laboratory and precision manufacturing environments.
Cleanroom AHUs can be designed for cooling/dehumidification and, where required, humidification.
Proper humidity control can support product quality, process stability and operator comfort.
Cleanroom HVAC systems can maintain pressure relationships between adjacent rooms through carefully balanced supply and return/exhaust airflows.
This can help reduce unwanted air movement between areas of different cleanliness levels.
HEPA filtration can be incorporated where high-efficiency particulate removal is required.
Controlled filtration, airflow, pressure and environmental conditions help create a more predictable cleanroom environment.
In pharmaceutical manufacturing, HVAC has become an important part of contamination-control strategies rather than simply a comfort-conditioning system.
Properly selected fans, ducts, diffusers and terminal filters help distribute conditioned air uniformly throughout the cleanroom.
Fan selection, VFD control, appropriate coil sizing, low-pressure-drop filtration and optimized airflow can help reduce operating energy.
Energy performance should be evaluated as a complete system rather than based only on AHU motor power.
Cleanroom AHUs can be equipped with sensors and controls for monitoring:
- Temperature
- Relative humidity
- Room pressure
- Filter pressure drop
- Fan status
- Airflow
- Coil conditions
- Alarm status
BMS integration can also be provided for centralized monitoring.
Clean Room AHU System Uses
Clean Room AHUs are widely used in pharmaceutical facilities for controlled manufacturing environments. Applications include:
- Tablet manufacturing
- Capsule manufacturing
- Injectable manufacturing areas
- Sterile processing areas
- Primary and secondary packaging
- Dispensing rooms
- Sampling rooms
- Laboratories
- Quality-control areas
The required HVAC configuration depends on the process, room classification and contamination-control strategy.
Cleanroom HVAC systems are used in biotechnology environments requiring controlled air quality and environmental conditions. Applications include:
- Cell culture areas
- Research laboratories
- Bioprocessing
- Controlled production rooms
- Laboratory environments
Cleanroom AHUs can be designed for selected healthcare environments requiring controlled ventilation and filtration. Applications include:
- Operation theatres
- Isolation rooms
- Intensive-care support areas
- Sterile processing areas
- Medical laboratories
- Controlled treatment areas
Electronics manufacturing can be sensitive to dust and environmental fluctuations. Clean Room AHUs can be used for:
- Electronics assembly
- Precision component manufacturing
- Semiconductor support areas
- PCB manufacturing
- Testing areas
- Sensor manufacturing
Semiconductor manufacturing requires extremely controlled environments. Cleanroom HVAC systems can provide:
- High-efficiency filtration
- Controlled airflow
- Temperature control
- Humidity control
- Pressure management
- Particle control
The AHU is generally part of a larger cleanroom air-distribution and filtration system.
Cleanrooms are used for manufacturing various medical devices where particulate and environmental control are important. Applications include:
- Medical disposables
- Surgical products
- Diagnostic equipment
- Catheters
- Precision medical components
Cleanroom-type HVAC systems can be used in selected food-processing and packaging environments where controlled hygiene and environmental conditions are required. Applications include:
- Food packaging
- Nutraceutical manufacturing
- Controlled processing areas
- Sensitive product handling
Aerospace manufacturing and precision assembly may require controlled environments for selected processes. Applications include:
- Precision component assembly
- Electronics
- Instrument manufacturing
- Controlled testing areas
Controlled HVAC environments can be used for precision manufacturing, electronics assembly and specialized defence-related production.
Clean Room AHUs can support controlled environments in:
- Research laboratories
- Material laboratories
- Microbiology laboratories
- Biotechnology laboratories
- Testing facilities
- Academic research centres
Optical components and precision products can be affected by airborne particles.
Cleanroom AHUs can help maintain controlled manufacturing and assembly environments.
Certain battery and advanced-material manufacturing processes require controlled temperature, humidity and particulate conditions. Cleanroom HVAC can be designed for suitable:
- Battery manufacturing areas
- Cell assembly
- Research laboratories
- Material-processing environments
Clean Room AHU Components & Control System
CLEAN ROOM AHU COMPONENTS
- AHU Casing – double-skin insulated construction provides thermal separation and structural protection.
- Pre-Filters – protect downstream components and reduce larger particulate loads.
- Fine Filters – provide additional filtration before final high-efficiency filtration.
- HEPA Filters – provide high-efficiency particulate filtration where required.
- Cooling Coil – controls supply-air temperature and can provide dehumidification.
- Heating / Reheat Coil – provides heating or temperature trimming where required.
- Fan – generates the airflow and pressure required to circulate air through the HVAC system.
- Dampers – control fresh, return and exhaust airflow.
- Drain Pan – collects condensate from cooling and dehumidification sections.
- Humidifier – adds moisture when required by the process.
- Sensors – monitor environmental and equipment parameters.
- Control Panel – coordinates fan operation, temperature control, humidity control, alarms and other functions.
CLEAN ROOM AHU CONTROL SYSTEM
Vayuvents Clean Room AHUs can be configured with automated controls for:
- Temperature
- Relative humidity
- Fan speed
- Airflow
- Room pressure
- Filter differential pressure
- HEPA filter condition
- Fresh-air damper
- Return-air damper
- Alarm indication
- Equipment status
- BMS communication
VFD-controlled fans can allow airflow adjustment according to the system operating requirement.
CLEAN ROOM AHU DESIGN CONSIDERATIONS
Before selecting a Clean Room AHU, the following parameters should be evaluated:
- Cleanroom Classification – the required cleanliness level determines the overall filtration and airflow strategy.
- Room Volume – the cleanroom dimensions are required to establish the air-volume requirement.
- Air Changes – required air changes depend on the cleanroom classification, process, contamination generation and overall HVAC strategy.
- Heat Load – heat generated by machinery, lighting, personnel and processes affects the cooling capacity.
- Temperature – the desired room temperature determines the heating and cooling requirements.
- Relative Humidity – humidity requirements influence cooling, dehumidification and humidification equipment.
- Pressure Cascade – the required pressure relationship between adjacent rooms determines supply, return and exhaust airflow balance.
- Filtration – the filtration arrangement should be selected according to the required cleanliness and risk of contamination.
- Airflow Pattern – airflow may be designed as turbulent/mixed flow or unidirectional flow depending on the application.
- Maintenance – filter access, coil cleaning, fan maintenance, drain cleaning and service access should be considered during AHU design.
Why Choose Vayuvents Clean Room AHU System?
OUR ENGINEERING APPROACH
Vayuvents Pvt. Ltd. provides customized Clean Room AHU solutions based on the actual requirements of the facility. Our engineering approach considers:
Cleanroom Classification → Airflow → Filtration → Cooling Load → Heating Load → Temperature → Humidity → Pressure → Air Distribution → Controls
KEY ADVANTAGES
- Clean Room AHU Manufacturer in India
- Clean Room AHU Exporter
- Customized cleanroom HVAC solutions
- Double-Skin AHU construction
- Multiple filtration stages
- HEPA filtration options
- Cooling and heating arrangements
- Humidity-control options
- VFD fan control
- Differential-pressure monitoring
- BMS integration
- Application-specific engineering
- Industrial and pharmaceutical HVAC experience
CUSTOMIZED CLEAN ROOM AHU
Vayuvents can customize the Clean Room AHU according to:
- Airflow capacity
- Static pressure
- Cleanroom classification
- Room dimensions
- Cooling capacity
- Heating capacity
- Fresh-air requirement
- Return-air percentage
- Filtration stages
- HEPA filter requirement
- Temperature range
- Relative humidity range
- Pressure differential
- Fan type
- Fan motor
- Panel construction
- Insulation
- Drain pan
- Humidification
- Dehumidification
- Control panel
- VFD
- BMS integration
- Overall AHU dimensions
QUALITY-FOCUSED MANUFACTURING
At Vayuvents Pvt. Ltd., Clean Room AHUs are engineered with emphasis on air cleanliness, filtration, temperature control, humidity management, pressure control, airflow performance, maintainability and reliable operation.
A cleanroom AHU should always be designed as part of the complete cleanroom HVAC system. The AHU, ductwork, terminal filters, diffusers, return-air arrangement, room construction, controls and monitoring system must work together to achieve the specified environmental conditions.
GET A CUSTOMIZED CLEAN ROOM AHU SYSTEM
If you are looking for a Clean Room AHU System Manufacturer and Exporter in India, Vayuvents Pvt. Ltd., Vasai, Maharashtra, provides customized HVAC air-handling solutions for controlled environments.
Our Clean Room AHU systems can be configured for pharmaceutical manufacturing, cleanrooms, hospitals, laboratories, electronics, biotechnology, medical-device manufacturing, food processing and other specialized applications.
Contact Vayuvents Pvt. Ltd. for a customized Clean Room AHU System based on your airflow, filtration, temperature, humidity, pressure and cleanroom requirements.
Frequently Asked Questions
A Clean Room AHU is an air handling unit specially configured to condition, filter and circulate air for a controlled cleanroom environment.
A conventional AHU may primarily focus on comfort cooling and ventilation, while a Clean Room AHU places greater emphasis on particle filtration, controlled airflow, temperature, humidity, pressure and contamination control.
HEPA filtration is commonly used in high-cleanliness applications, but the exact filtration arrangement depends on the cleanroom classification and HVAC design.
Yes. Vayuvents can design the AHU and filtration arrangement according to the required application and cleanroom system.
Yes. Cooling/dehumidification, reheating and humidification can be incorporated according to the required environmental conditions.
The AHU and associated supply, return and exhaust systems can be designed to establish the required pressure relationships between cleanroom areas.
Yes. Suitable sensors, controllers, VFDs and communication interfaces can be incorporated for BMS integration.
Clean Room AHUs are used in pharmaceutical, biotechnology, medical-device, healthcare, electronics, semiconductor, food, aerospace, defence, battery, precision engineering and research applications.
